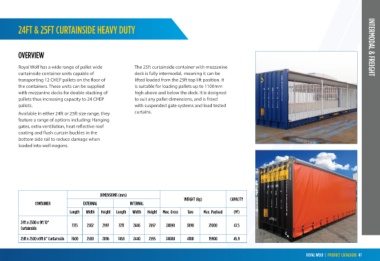

24FT & 25FT CURTAINSIDE HEAVY DUTY




        OVERVIEW                                                                                                                           INTERMODAL & FREIGHT

        Royal Wolf has a wide range of pallet wide   The 25ft curtainside container with mezzanine
        curtainside container units capable of     deck is fully intermodal,  meaning it can be
        transporting 12 CHEP pallets on the floor of   lifted loaded from the 25ft top lift position. It
        the containers. These units can be supplied   is suitable for loading pallets up to 1100mm
        with mezzanine decks for double stacking of   high above and below the deck. It is designed
        pallets thus increasing capacity to 24 CHEP   to suit any pallet dimensions, and is fitted
        pallets.                                   with suspended gate systems and load tested
        Available in either 24ft or 25ft size range, they   curtains.
        feature a range of options including: Hanging
        gates, extra ventilation, heat reflective roof
        coating and flush curtain buckles in the
        bottom side rail to reduce damage when
        loaded into well wagons.










                                      DIMENSIONS (mm)
                                                                      WEIGHT (kg)      CAPACITY
              CONTAINER         EXTERNAL         INTERNAL
                           Length  Width  Height  Length  Width  Height  Max. Gross  Tare  Max. Payload  (M ) 3
         24ft x 2500 x 9ft 10”
         Curtainside        7315  2502  2997  7211  2446  2697  24890  3890    21000    47.5
         25ft x 2500 x9ft 6” Curtainside  7600  2500  2896  7458  2440  2595  24000  4100  19900  45.9


                                                                                                                   ROYAL WOLF  |  PRODUCT CATALOGUE  47
