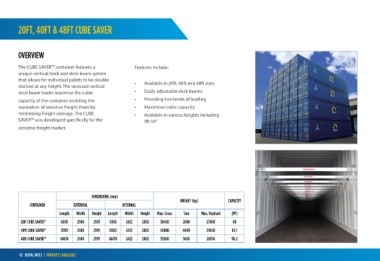

20FT, 40FT & 48FT CUBE SAVER

OVERVIEW

The CUBE SAVER™ container features a Features Include:
unique vertical track and deck beam system
that allows for individual pallets to be double-
stacked at any height. The recessed vertical • Available in 20ft, 40ft and 48ft sizes
deck beam tracks maximise the cubic • Easily adjustable deck beams
capacity of the container enabling the • Providing two levels of loading
separation of sensitive freight there by • Maximises cubic capacity
minimising freight damage. The CUBE • Available in various heights including
SAVER™ was developed specifically for the 9ft 10”
sensitive freight market.

DIMENSIONS (mm)
WEIGHT (kg) CAPACITY
CONTAINER EXTERNAL INTERNAL
Length Width Height Length Width Height Max. Gross Tare Max. Payload (M ) 3
20ft CUBE SAVER™ 6058 2500 2997 5898 2422 2802 30480 2680 27800 40
40ft CUBE SAVER™ 12192 2500 2997 12032 2422 2802 34000 4440 29650 81.7
48ft CUBE SAVER™ 14630 2500 2997 14470 2422 2802 32000 5650 26350 98.2
