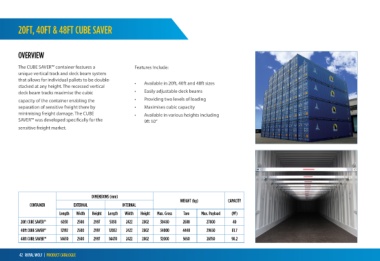

20FT, 40FT & 48FT CUBE SAVER 20FT SIDE DOOR

OVERVIEW OVERVIEW INTERMODAL & FREIGHT

The CUBE SAVER™ container features a Features Include: Royal Wolf manufactures a range of 20ft Optional Features Include:
unique vertical track and deck beam system side door containers which are designed for
that allows for individual pallets to be double- side loading access of palletised and over • Vented, non-vented and partially
stacked at any height. The recessed vertical • Available in 20ft, 40ft and 48ft sizes dimensional freight. vented doors
deck beam tracks maximise the cubic • Easily adjustable deck beams The design features bi-fold doors which
capacity of the container enabling the • Providing two levels of loading provide full side access for the loading and • Slimline doors
separation of sensitive freight there by • Maximises cubic capacity unloading of all types of freight. • Adjustable mezzazine decks
minimising freight damage. The CUBE • Available in various heights including • Load binders
SAVER™ was developed specifically for the 9ft 10”
sensitive freight market.

DIMENSIONS (mm)
WEIGHT (kg) CAPACITY
CONTAINER EXTERNAL INTERNAL
Length Width Height Length Width Height Max. Gross Tare Max. Payload (M ) 3
20ft x 2500 x 9ft 6” 6100 2502 2896 6002 2397 2643 30480 3820 26660 38
DIMENSIONS (mm)
WEIGHT (kg) CAPACITY 20ft x 2500 x 9ft 10” 6100 2502 2997 6002 2397 2744 30480 3910 26570 39.5
CONTAINER EXTERNAL INTERNAL
20ft x 2500 x 10’
Length Width Height Length Width Height Max. Gross Tare Max. Payload (M ) 3 Ventilated 6100 2522 3050 6002 2422 2786 30480 4250 26230 40.5
20ft CUBE SAVER™ 6058 2500 2997 5898 2422 2802 30480 2680 27800 40 20ft x 2500 x 9ft 10”
40ft CUBE SAVER™ 12192 2500 2997 12032 2422 2802 34000 4440 29650 81.7 Ventilated 6100 2502 2997 6002 2397 2704 30480 4320 26160 38.9
48ft CUBE SAVER™ 14630 2500 2997 14470 2422 2802 32000 5650 26350 98.2 Mezzanine Deck 5992 2380 154 N/A N/A N/A N/A 1150 10500 N/A
