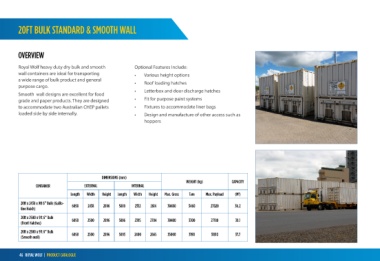

20FT BULK STANDARD & SMOOTH WALL 24FT & 25FT CURTAINSIDE HEAVY DUTY

OVERVIEW OVERVIEW INTERMODAL & FREIGHT

Royal Wolf heavy duty dry bulk and smooth Optional Features Include: Royal Wolf has a wide range of pallet wide The 25ft curtainside container with mezzanine
wall containers are ideal for transporting • Various height options curtainside container units capable of deck is fully intermodal, meaning it can be
a wide range of bulk product and general • Roof loading hatches transporting 12 CHEP pallets on the floor of lifted loaded from the 25ft top lift position. It
purpose cargo. the containers. These units can be supplied is suitable for loading pallets up to 1100mm
• Letterbox and door discharge hatches
Smooth wall designs are excellent for food with mezzanine decks for double stacking of high above and below the deck. It is designed
grade and paper products. They are designed • Fit for purpose paint systems pallets thus increasing capacity to 24 CHEP to suit any pallet dimensions, and is fitted
to accommodate two Australian CHEP pallets • Fixtures to accommodate liner bags pallets. with suspended gate systems and load tested
loaded side by side internally. • Design and manufacture of other access such as Available in either 24ft or 25ft size range, they curtains.
hoppers feature a range of options including: Hanging
gates, extra ventilation, heat reflective roof
coating and flush curtain buckles in the
bottom side rail to reduce damage when
loaded into well wagons.

DIMENSIONS (mm)
WEIGHT (kg) CAPACITY
CONTAINER EXTERNAL INTERNAL
Length Width Height Length Width Height Max. Gross Tare Max. Payload (M ) 3 DIMENSIONS (mm)
WEIGHT (kg) CAPACITY
20ft x 2438 x 9ft 6” Bulk (Guillo- 6058 2438 2896 5889 2352 2614 30480 3460 27020 36.2 CONTAINER EXTERNAL INTERNAL
tine Hatch)
3
Length Width Height Length Width Height Max. Gross Tare Max. Payload (M )
20ft x 2500 x 9ft 6” Bulk 6058 2500 2896 5886 2395 2704 30480 3300 27180 38.1
(Front Hatches) 24ft x 2500 x 9ft 10” 7315 2502 2997 7211 2446 2697 24890 3890 21000 47.5
Curtainside
20ft x 2500 x 9ft 6” Bulk 6058 2500 2896 5893 2400 2665 35000 3190 31810 37.7
(Smooth wall) 25ft x 2500 x9ft 6” Curtainside 7600 2500 2896 7458 2440 2595 24000 4100 19900 45.9
