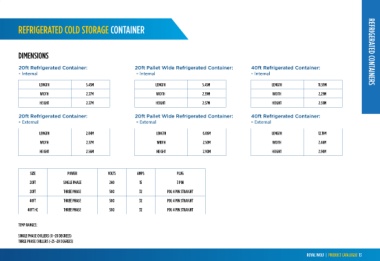

REFRIGERATED COLD STORAGE CONTAINER

DIMENSIONS REFRIGERATED CONTAINERS

20ft Refrigerated Container: 20ft Pallet Wide Refrigerated Container: 40ft Refrigerated Container:
- Internal - Internal - Internal

LENGTH 5.45M LENGTH 5.45M LENGTH 11.59M
REFRIGERATED CONTAINERS
WIDTH 2.27M WIDTH 2.39M WIDTH 2.29M
HEIGHT 2.27M HEIGHT 2.57M HEIGHT 2.59M

20ft Refrigerated Container: 20ft Pallet Wide Refrigerated Container: 40ft Refrigerated Container:
- External - External - External
LENGTH 2.84M LENGTH 6.06M LENGTH 12.19M

WIDTH 2.37M WIDTH 2.50M WIDTH 2.44M
HEIGHT 2.56M HEIGHT 2.90M HEIGHT 2.90M

SIZE POWER VOLTS AMPS PLUG
20FT SINGLE PHASE 240 15 3 PIN
20FT THREE PHASE 500 32 PDL 4 PIN STRAIGHT
40FT THREE PHASE 500 32 PDL 4 PIN STRAIGHT
40FT HC THREE PHASE 500 32 PDL 4 PIN STRAIGHT

TEMP RANGES:
SINGLE PHASE CHILLERS (0 -20 DEGREES)
THREE PHASE CHILLERS (-25 -20 DEGREES)
